What Is a Terminal Block?

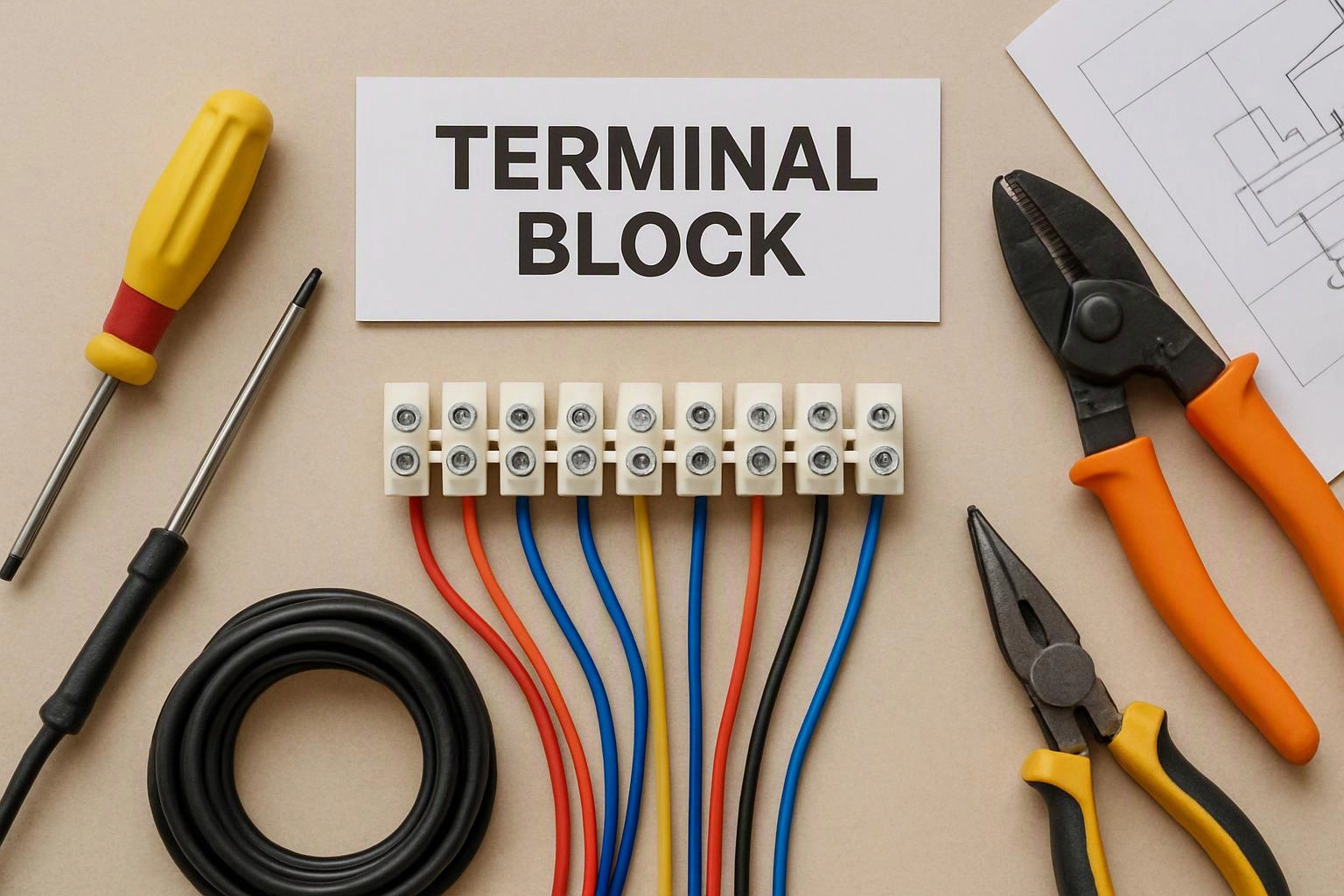

A Terminal Block is an insulated electrical connector that joins wires to a common connection point. Terminals secure conductors with screws, clamps, or spring mechanisms while keeping connections organized inside a panel or enclosure. Terminal blocks may separate circuits, distribute power, or connect field wiring to control equipment.
Quick Facts About Terminal Block
Category
Electrical connection component
Used for
Joining and distributing conductors
Common confusion
Often confused with a wire nut
Also called
Terminal strip
Often discussed with
Commercial Electrical Repair
Key Takeaways About Terminal Block
- Its insulated body keeps nearby wire connections separated.
- A terminal block supports organized repairs and circuit identification.
- A terminal block is not the same as a wire nut.
How Terminal Block Works

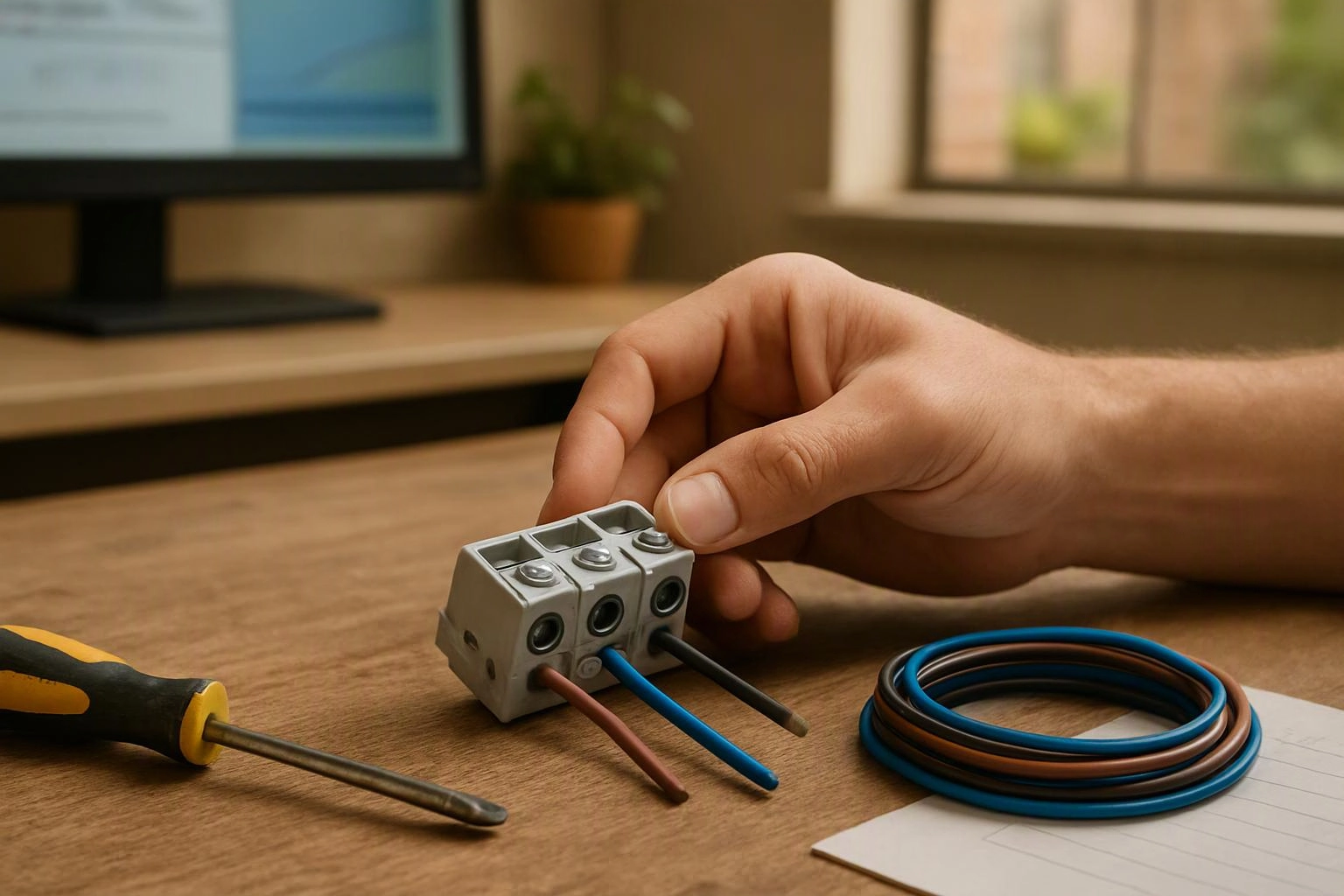

A Terminal Block holds a stripped conductor in a metal terminal that connects to another wire or shared electrical path. An insulated housing separates neighboring terminals and helps keep the wiring arranged inside a panel. The connection method may use a screw, clamp, or spring pressure.
Related glossary terms: Busbar, Conduit, Continuity.
Terminal blocks are selected to match the conductor type, wire size, circuit voltage, and available space. A grouped terminal block can provide a clear point for testing and tracing wires. Some versions include a fuse position, a disconnect feature, or a connection to a busbar. A wiring diagram helps identify each terminal and its circuit function.
From the Chris Miller Electric team
When we inspect a terminal block, we check conductor security, visible heat damage, labeling, and the condition of the enclosure. We also trace each connection against the wiring layout so a loose or misplaced wire does not remain hidden during commercial electrical repair.
Terminal Block in Practice: A Real-World Example
A commercial control panel may use a terminal block to connect incoming field wiring to a motor control circuit. A technician can isolate and test each labeled connection without disturbing unrelated conductors.
