What Is Continuity?
Continuity is an unbroken electrical path that allows current to move between two points in a circuit. An electrician checks continuity with a meter to identify an open wire, loose connection, failed switch, or damaged component. A continuity reading supports a complete path, while no reading points to a break that needs further testing.
Quick Facts About Continuity
Category
Electrical testing concept
Used for
Finding breaks in circuits
Common confusion
Continuity is not the same as voltage
Also called
Continuity test, Electrical continuity
Often discussed with
Electrical Troubleshooting
Key Takeaways About Continuity
- Continuity describes a complete path, not proper circuit operation.
- A meter can locate breaks in wires, switches, and components.
- A continuity beep does not prove that voltage is present.
How Continuity Works
Continuity testing sends a small test signal between selected points in a de-energized circuit. A meter detects whether the signal can travel through the intended path. A complete path produces a continuity indication, while an open path produces no indication or a different reading.
Related glossary terms: Ohm, Current, Voltage.
Electricians use continuity testing to trace conductors and check components such as switches and fuses. The test can show that a wire is broken, a terminal is loose, or a switch does not connect when operated. A positive continuity result only describes the path between the test points. It does not confirm correct voltage, current capacity, polarity, or safe operation under load.
From the Chris Miller Electric team

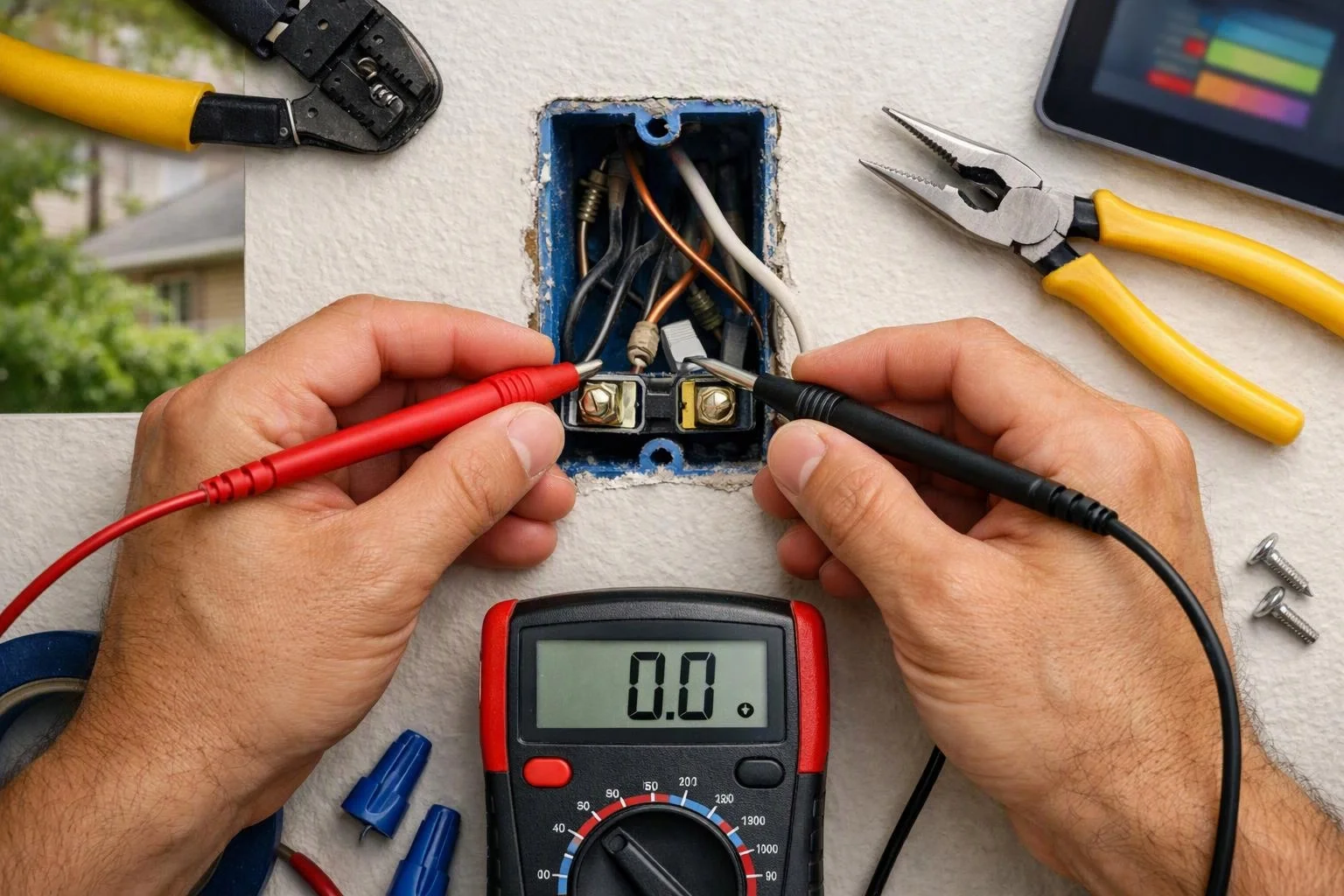

When we troubleshoot a circuit, we use continuity checks to follow the suspected path between accessible connection points. We compare the meter result with the wiring layout and inspect terminals, splices, switches, and conductors when the path appears open. We also perform other tests because continuity alone does not verify energized performance.
Continuity in Practice: A Real-World Example
A wall switch may fail to control a light because a conductor is loose inside a box. During electrical troubleshooting, a continuity check across the switch can show whether the switch closes the circuit when operated.
