What is Electrical Load Calculation?

Understanding Electrical Load Calculation

Electrical Load Calculation estimates power needs during normal system operation. It considers lighting, receptacles, fixed appliances, heating, air conditioning, motors, and other equipment. The result uses amperes, volt-amperes, or kilovolt-amperes. It helps set the needed electrical service capacity.

Related glossary terms: Electrical Service, National Electrical Code, Overcurrent.

The calculation differs from a simple device count. Some equipment runs only part of the time. Other equipment may run together or start with a high surge. A proper calculation uses demand factors and operating rules.National Electrical Code, also called NFPA 70, describes these rules. Equipment makers also provide operating rules.

How Electrical Load Calculation Works, Is Measured, or Is Used?

An electrician or designer begins by listing the building loads. They record each unit's voltage, wattage, amperage, and operating type. The list may include general lighting, kitchen appliances, water heaters, furnaces, air conditioners, pumps, welders, and electric vehicle chargers. Wattage can convert to amperage with a formula. Amps equal watts divided by volts. This works when power factor and operating conditions don't need a detailed method.

The calculation then groups loads by feeder or service. It applies the correct demand rules. Heating and cooling loads may need special treatment. Both systems don't normally operate at full output together. Motors also need attention. Starting current can exceed running current. The final result is compared with equipment ratings. These include service conductors, the main disconnect, panelboard, and protective devices.

For a residential service, the worksheet usually accounts for general loads. It also includes required small-appliance and laundry circuits. Cooking equipment, dryers, heating, air conditioning, and other fixed loads also count. A commercial calculation may need detailed schedules. These schedules show equipment duty cycles.power factor. The finished record should show load assumptions and the calculation method. It should also show selected equipment ratings.

Why Electrical Load Calculation Matters?

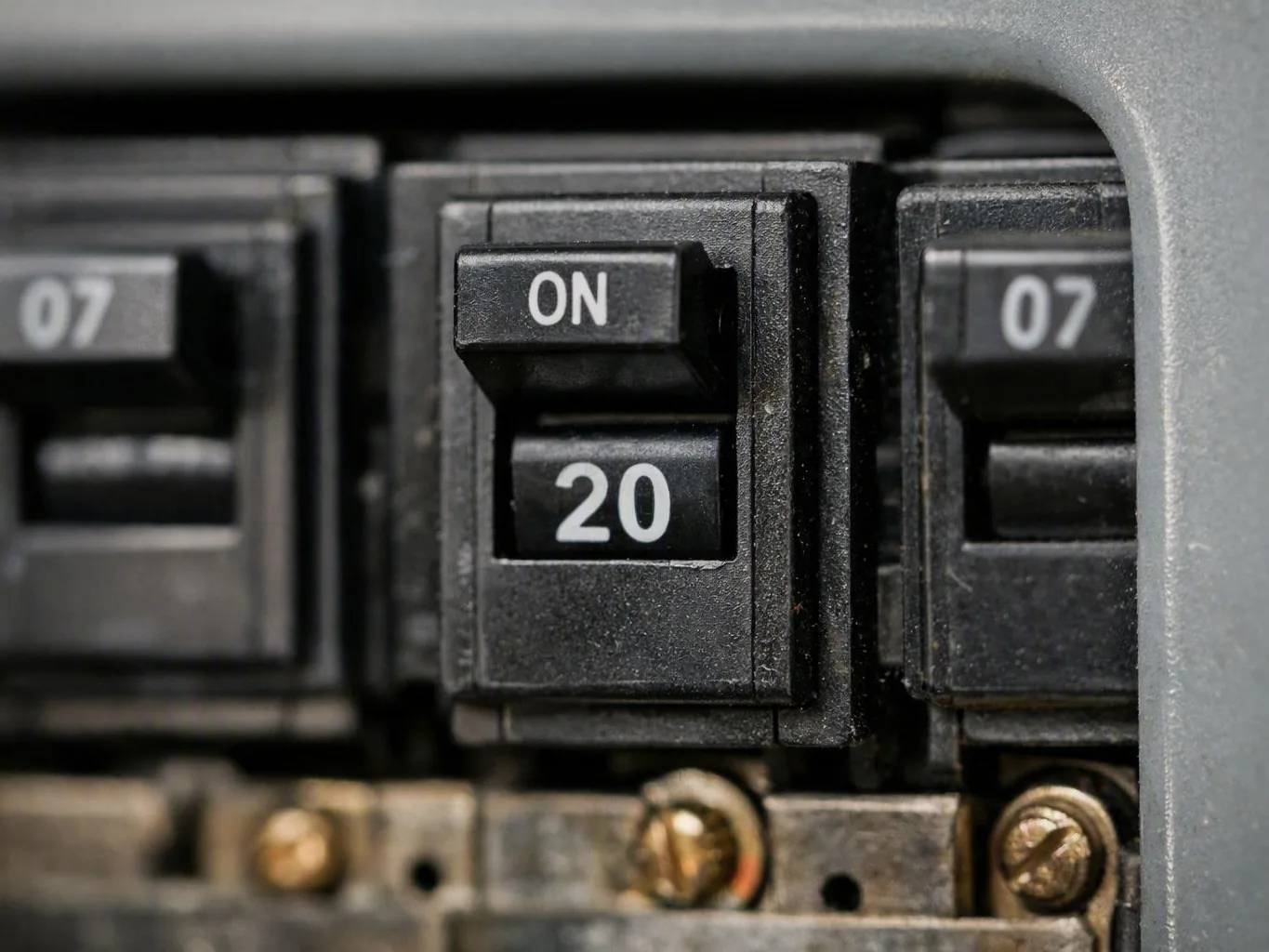

A correct calculation prevents an undersized system from carrying unsafe demand. An undersized service may cause nuisance breaker trips, voltage problems, or overheated conductors. It may also cause delays during an electrical inspection. An oversized design can raise project costs. It doesn't improve performance.

The calculation supports decisions about a service upgrade, panel replacement, generator connection, or large appliance installation. It also helps identify limits before an owner adds an electric vehicle charger. It can also help before adding a heat pump, tankless water heater, or workshop equipment. Electrical rules require specific methods in many situations. A rough estimate may not satisfy permit or inspection requirements.

When Electrical Load Calculation Matters Most?

Load calculation becomes especially important when a building receives new high-demand equipment. Common examples include converting a home from gas to electric heat. Other examples include installing an EV charger or adding an addition. Replacing a small service with a larger one also requires care. The calculation should also be reviewed after major commercial equipment changes. Production use changes may also require a review.

Emergency conditions can make this need more urgent. A failed service or panel may require temporary load decisions. These decisions show which loads can remain energized. A safe repair still depends on conductor ratings and overcurrent protection. It also depends on available capacity and local code requirements. In Fort Wayne and other Indiana locations. Electrical code can affect the design. The permit process can also affect work approval.
