What Is an Overload?
An overload is a condition in which a circuit carries more electrical current than its wiring or protective device is designed to handle. The excess demand often occurs when several appliances share one circuit. A circuit breaker may trip to interrupt power and limit heat buildup in the conductors.
Quick Facts About Overload
Category
Electrical fault condition
Used for
Circuit load diagnosis
Common confusion
Short circuit
Also called
Circuit overload
Often discussed with
Circuit Breaker Repair, Electrical Troubleshooting
Key Takeaways About Overload
- An overload develops from excessive demand on one circuit.
- A tripped breaker may signal repeated loading problems.
- An overload is not the same as a short circuit.
How Overload Works
Overload affects a circuit when connected equipment draws more Current than the circuit can carry during normal operation. Heating appliances, portable equipment, and other high-demand devices can add demand to the same branch circuit. The circuit breaker senses the resulting condition and may open the circuit to stop power flow.
Related glossary terms: Circuit Load, Current, Branch Circuit.
A breaker that trips repeatedly can point to an overloaded circuit, a faulty appliance, or a problem with the circuit itself. An electrician checks the connected loads, wiring condition, breaker operation, and termination points. The inspection separates an overload from a Short Circuit, which creates a much more abrupt fault path. The corrective work may involve moving equipment to another suitable circuit, repairing damaged wiring, or addressing a defective device.
From the Chris Miller Electric team

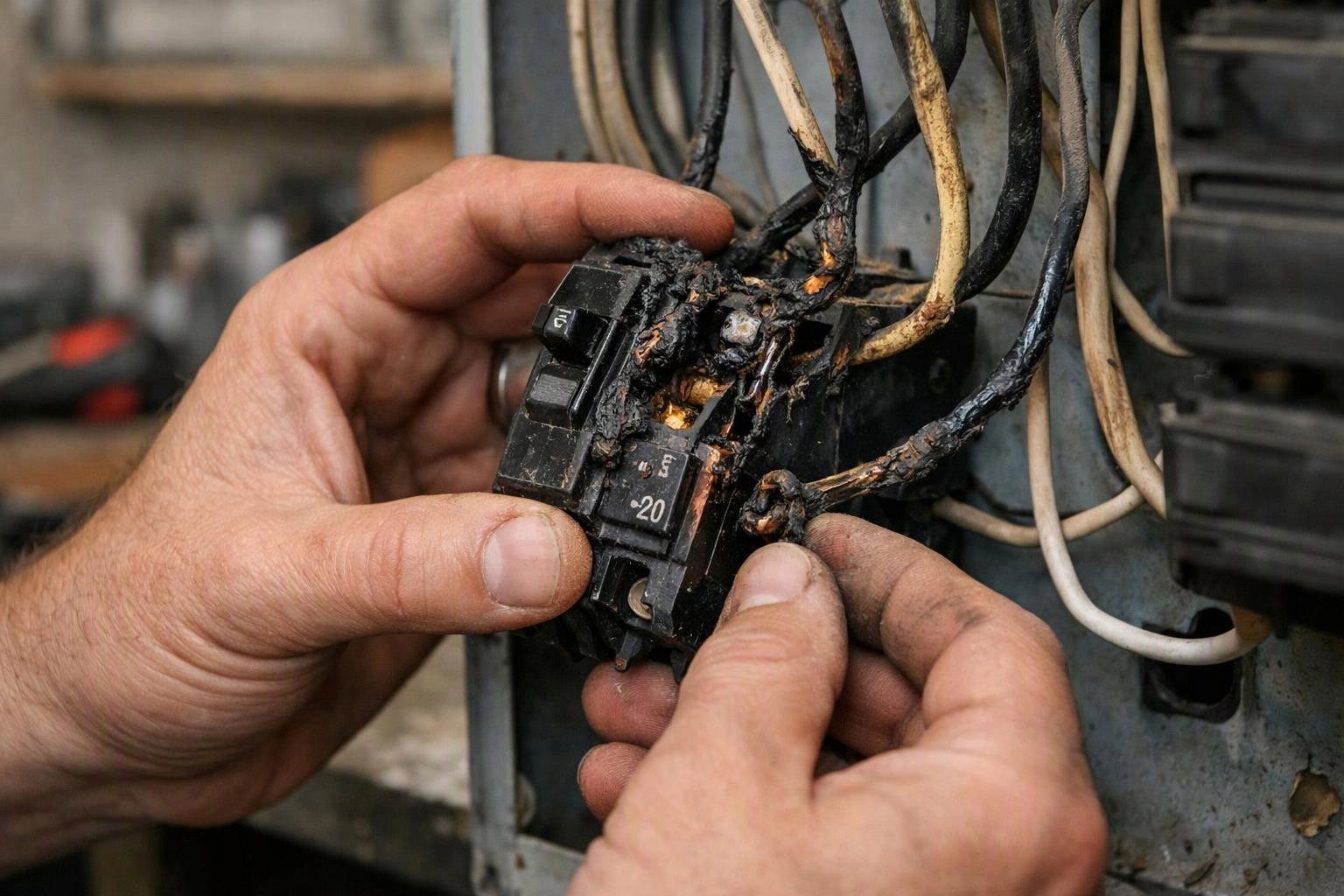

When we investigate an overload, we identify which equipment operates on the circuit and inspect the breaker, wiring, and connections. We also look for heat damage and signs that a connected appliance is drawing abnormal current. Our team separates normal demand from a fault that needs circuit breaker repair.
Overload in Practice: A Real-World Example
A kitchen circuit may trip when a countertop appliance and a portable heater operate at the same time. Circuit breaker repair includes checking the circuit, its connections, and the connected equipment to determine whether demand or a damaged component caused the trip.
Related Services
Related Terms
Circuit Load
A circuit load is the electrical demand placed on a circuit by connected equipment, fixtures, and…
Current
Current is the movement of electric charge through a conductor, such as a wire or cable…
Branch Circuit
A branch circuit is the wiring path that carries power from a load center to outlets…
Short Circuit
A short circuit is an unintended electrical path with very low resistance between conductors at different…
