Can an AFCI breaker trip without a visible spark?

Yes. An AFCI can respond to arc characteristics inside a wall, device, cord, or connection even when no visible spark appears.

Does replacing an AFCI breaker fix repeated trips?

Not always. Repeated trips can result from damaged wiring, a faulty connected device, loose connections, or an incompatible replacement device.

What is the difference between AFCI and GFCI protection?

AFCI protection responds to electrical patterns associated with arcing. GFCI protection responds to an imbalance between outgoing and returning current.

Glossary

What Is an AFCI?

AFCI is an arc-fault circuit interrupter that monitors electrical current for patterns linked to unintended arcing. When the device detects a hazardous arc pattern, the AFCI opens the circuit and stops power flow. AFCIs help protect branch-circuit wiring from arc faults that may develop in damaged cords, loose connections, or deteriorated insulation.

Quick Facts About AFCI

Key Takeaways About AFCI

AFCIs respond to arc patterns, not ordinary overloads.
AFCI protection may be built into a breaker or receptacle.
AFCI and GFCI devices detect different electrical problems.

How AFCI Works

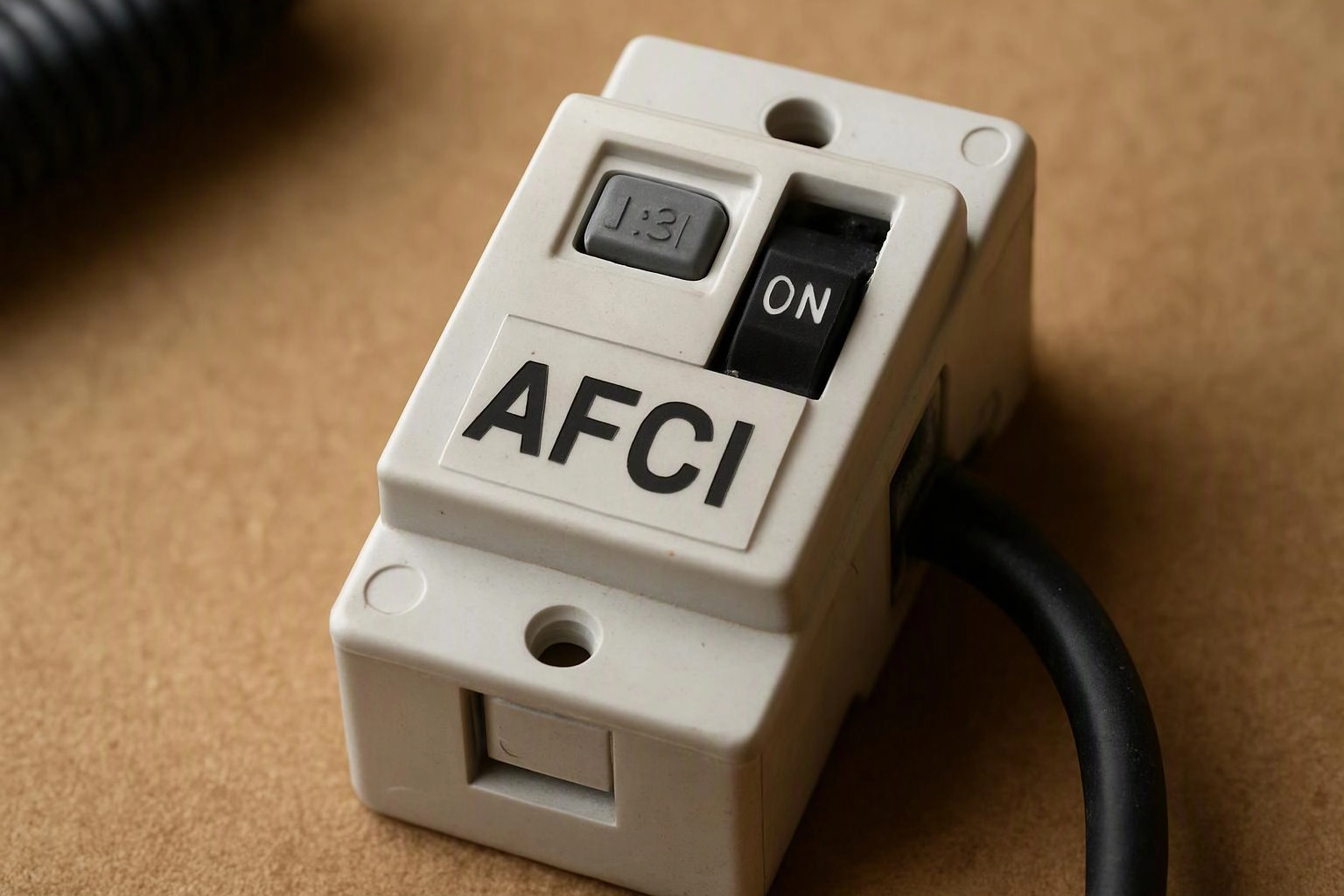

Close-up of a white AFCI electrical device with an ON switch and black cable on a brown surface

An AFCI samples the current flowing through a circuit and looks for an electrical pattern associated with arcing. A normal load produces a predictable current pattern. Damaged insulation, a loose terminal, or a failing cord can create irregular changes that the device evaluates.

Related glossary terms: Branch Circuit, Ground Fault, Short Circuit.

When the detected pattern reaches the device's trip threshold, the AFCI opens the circuit and stops power to the connected wiring. An AFCI breaker monitors the branch circuit from the electrical panel. An AFCI receptacle provides protection from its installation point and can protect downstream outlets when wired for that purpose.

GFCI protection serves a different purpose. GFCI devices compare current leaving and returning through a circuit, while AFCIs focus on arc signatures. A circuit may need one type of protection, the other type, or both, depending on its design and application.

Two men examine a small black device with a label, indoors near a computer monitor

From the Chris Miller Electric team

When we handle Circuit Breaker Replacement, we identify whether the existing device provides AFCI protection and confirm that the replacement matches the panel and circuit. We also inspect accessible connections and investigate repeated trips before treating the breaker as the only problem.

AFCI in Practice: A Real-World Example

A bedroom circuit has an AFCI breaker that trips after a damaged lamp cord is plugged in. Replacing the breaker alone would not correct the cord fault, so the cord and circuit condition need separate attention.
